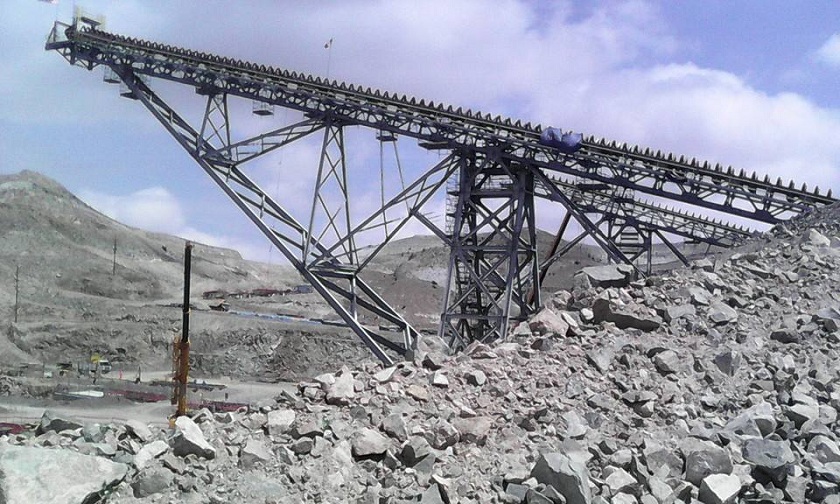

Mining Belt Conveyor


Conveyor longitudinal slope adjustment. During the laying process of the whole machine, due to the unevenness of the floor of the roadway, there may be uneven places. The area protruding from the bottom plate should be adjusted to moderate the convex curve to prevent the load from being concentrated on the individual rollers. If necessary, increase the number of rollers. The concave part of the bottom plate must be adjusted until the entire conveyor belt and any group of rollers can be in contact.

Conveyor belt deviation adjustment. Conveyor belt deviation is an abnormal phenomenon during the operation of the conveyor. Running for a long time, causing the belt to be pulled or even torn, reducing the conveyor belt to make the life. Therefore, there is a phenomenon of deviation. Commissioning must be carried out and adjusted in a timely manner. The conveyor belt is guaranteed to run in the middle of the rollers and rollers. There are many factors influencing the deviation of the conveyor belt. The installation quality of the equipment is such that the fuselage is not straight; there are internal and appearance quality problems of the conveyor belt, and some of the core tension is uneven. These can cause the conveyor to run off, so it should be adjusted during no-load operation. First, start with the machine head unloading the drum. Follow the conveyor belt transport direction to first adjust the strand back to the empty section, and then adjust the upper strand. Among them, the method of discriminating and adjusting the deviation phenomenon is as follows. If the conveyor belt is often running in a certain section during the operation of the machine, first observe whether the installation is inclined or not straight. If the installation quality is no problem, Adjust the roller or roller to reset the belt.

Use the roller to adjust the deviation. Generally, when there is a deviation in a certain section, use the roller to adjust the factory to adjust. To adjust the roller, one or several rollers that are biased to the side of the conveyor belt are moved forward in the running direction of the conveyor belt. Generally speaking, the adjustment of the idler starts from the deviation point, and the adjustment amount of each roller is less, and the number of adjustment rollers is more, which is better. Use the roll to adjust the deviation. When the conveyor belt is deflected at the reversing roll, it is generally biased to which side, that is, which roller shaft is moved forward by a distance along the running direction of the conveyor belt.
